intro & search

Week1-Intro & Uninformed Search

1.3 Uninformed Search | Introduction to Artificial Intelligence

对应的是FDS课程的Depth-First Search, Breadth-First Search, Uniform-Cost Search内容.

• Depth-First Search:

  last in first out, selects the deepest frontier node from the start node for expansion.

• Breadth-First Search:

  first in first out, selects the shallowest frontier node from the start node for expansion.

  It prioritizes the expansion of shallow nodes. Therefore, the search always returns a path with the smallest number of edges.

• Uniform Cost Search:

  always selects the lowest cost frontier node from the start node for expansion.

  It prioritizes the expansion of paths with low costs in the fringe. Therefore, the search always returns a path with the lowest cost.

• The general pseudocode for tree/graph search:

  function TREE-SEARCH(problem, frontier) return a solution or failure
      frontier ← INSERT(MAKE-NODE(INITIAL-STATE[problem]), frontier)
      while not IS-EMPTY(frontier) do
          node ← POP(frontier)
          if problem.IS-GOAL(node.STATE) then return node
          for each child-node in EXPAND(problem, node) do
              add child-node to frontier
      return failure


  The expand function:

  function EXPAND(problem, node) yields nodes
      s ← node.STATE
      for each action in problem.ACTIONS(s) do
          s' ← problem.RESULT(s, action)
          yield NODE(STATE=s', PARENT=node, ACTION=action)


• Annalysis:

  We suppose that there are \(\textcolor{red}{b}\) nodes in the second layer, and if the depth +1, the number of nodes \(\times b\).

  The goal is on the \(\textcolor{red}{s}\) tier, and and maximum depth is \(\textcolor{red}{m}\).

  In UCS, we define the optimal path cost as \(\textcolor{red}{C^∗}\) and the minimal cost between two nodes in the state space graph as \(\textcolor{red}{\epsilon}\).

	DFS	BFS	UCS
Completeness（完备性）	×	√	√
Optimality（最优性）	×	×	√
Time Complexity	\(O(b^m)\)	\(O(b^s)\)	\(O(b^{\frac{C^*}{\epsilon}})\)
Space Complexity	\(O(bm)\)	\(O(b^s)\)	\(O(b^{\frac{C^*}{\epsilon}})\)

Three strategies above are fundamentally the same - differing only in expansion strategy, so they share the pseudocode above.

Tips

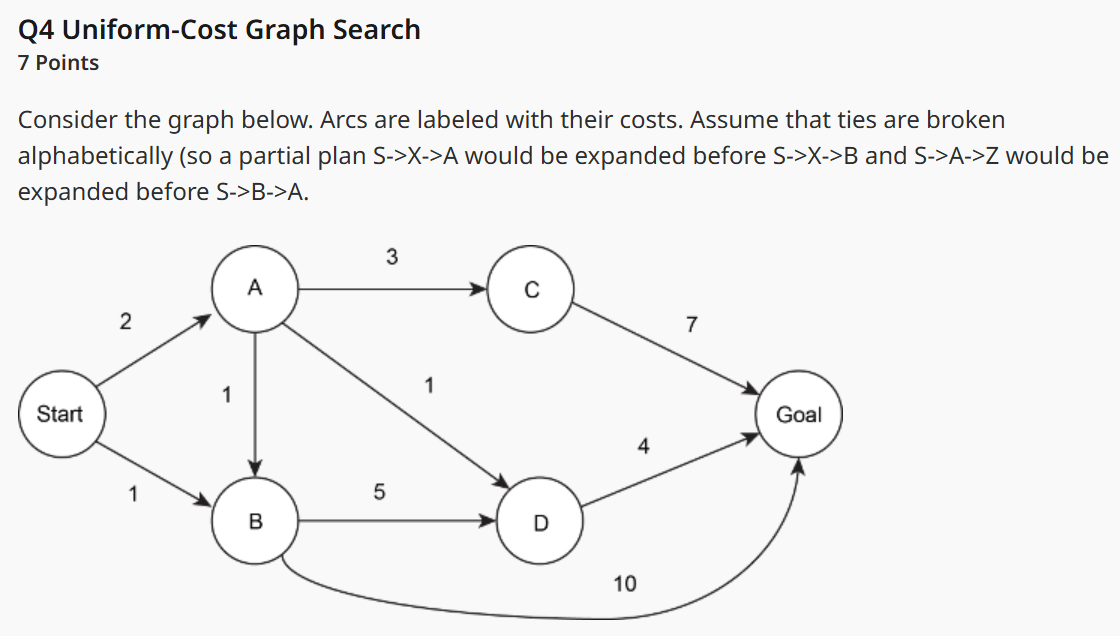

UCS example

step	1	2	3	4	5	6	7
expand	S	S-B	S-A	S-A-D	S-A-C	pop S-B-D	S-A-D-G
fringe	(S-A, 2), (S-B, 1)	(S-A, 2), (S-B-D, 6), (S-B-G, 11)	(S-B-D, 6), (S-B-G, 11), (S-A-D, 3), (S-A-C, 5)	(S-B-D, 6), (S-B-G, 11), (S-A-C, 5), (S-A-D-G, 7)	(S-B-D, 6), (S-B-G, 11), (S-A-D-G, 7), (S-A-C-G, 12)	(S-B-G, 11), (S-A-D-G, 7), (S-A-C-G, 12)	Nothing to fringe
closed set	S	S,B	S,B,A	S,B,A,D	S,B,A,D,C	S, B, A, D, C	S, B, A, D, C, G

Return: Start-A-D-Goal
