AES

cryptohack-aes_starter

Writeup

  • The mathematical term for a one-to-one correspondence: \(\textcolor{red}{Bijection}\).

  • The best single-key attack against AES: \(\textcolor{red}{biclique}\)

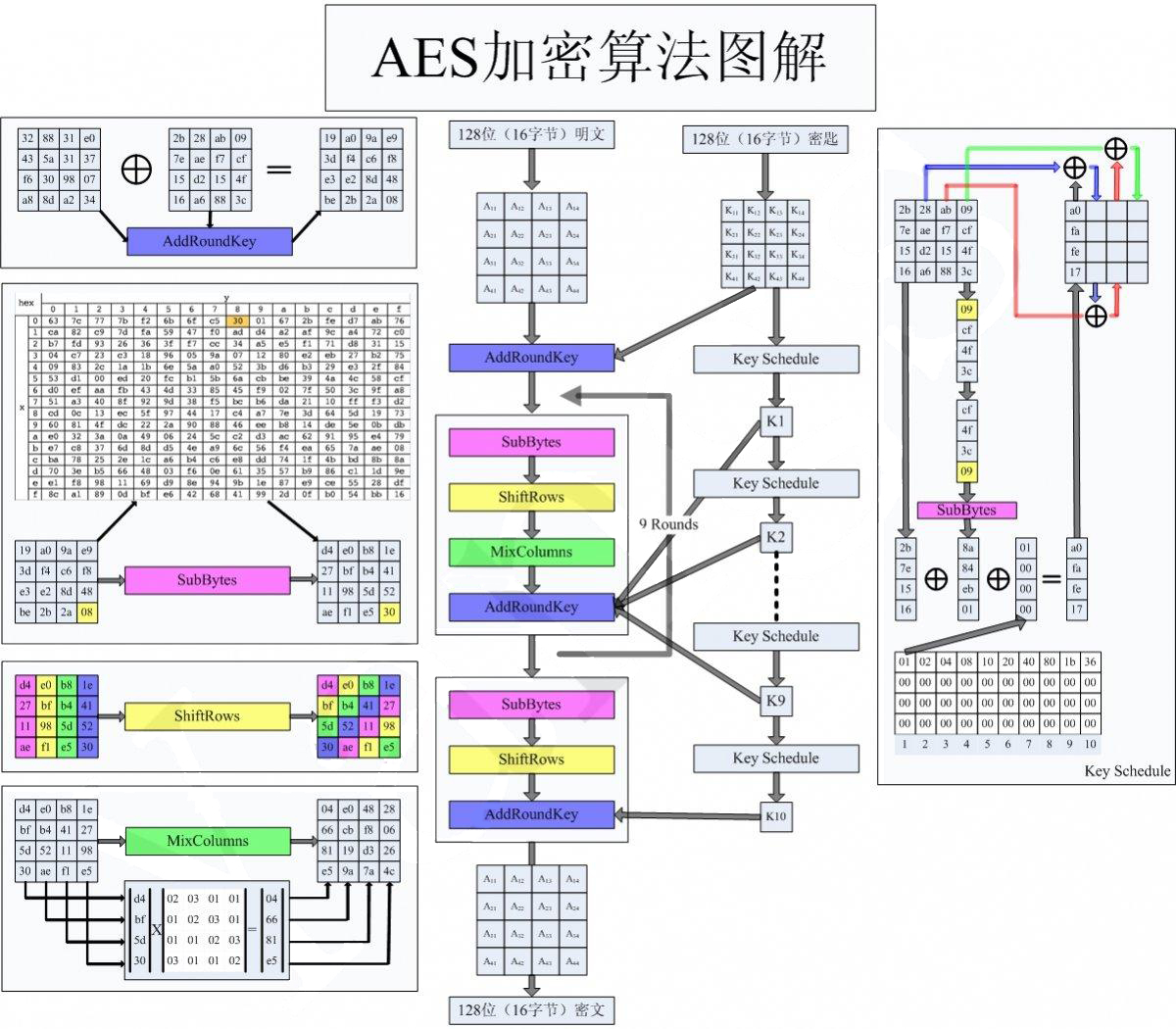

AES是一种块加密算法，大致流程如下图所示（图源CTFwiki）：

rr

其主要过程如下：

  1. KeyExpansion or Key Schedule

    From the 128 bit key, 11 separate 128 bit "round keys" are derived: one to be used in each AddRoundKey step.

  2. Initial key addition

    AddRoundKey - the bytes of the first round key are XOR'd with the bytes of the state.

  3. Round - this phase is looped 10 times, for 9 main rounds plus one "final round"

  4. SubBytes - each byte of the state is substituted for a different byte according to a lookup table ("S-box").

  5. ShiftRows - the last three rows of the state matrix are transposed—shifted over a column or two or three.

  6. MixColumns - matrix multiplication is performed on the columns of the state, combining the four bytes in each column. This is skipped in the final round.

  7. AddRoundKey - the bytes of the current round key are XOR'd with the bytes of the state.

Included is a bytes2matrix function for converting our initial plaintext block into a state matrix. Write a matrix2bytes function to turn that matrix back into bytes, and submit the resulting plaintext as the flag.

bytes2matrix 以及 matrix2byte 函数
def bytes2matrix(text):
    """ Converts a 16-byte array into a 4x4 matrix.  """
    return [list(text[i:i+4]) for i in range(0, len(text), 4)]

def matrix2bytes(matrix):
    """ Converts a 4x4 matrix into a 16-byte array.  """
    return bytes([byte for row in matrix for byte in row])  # 只需要补上这句话就行了

matrix = [
    [99, 114, 121, 112],
    [116, 111, 123, 105],
    [110, 109, 97, 116],
    [114, 105, 120, 125],
]

print(matrix2bytes(matrix))

SubBytes是AES每一轮的第一步，将状态矩阵的每个元素通过一个查找表subbox映射生成下一个状态矩阵.

这里的查找表运用了非常逼近非线性函数的构造，即Galois Field 取模数\(2^{8}\)下的高次多项式函数：

\[f(x) = 05x^{fe} + 09x^{fd} + f9 x^{fb} + 25x^{f7} + f4x^{ef} + 01x^{df} + b5x^{bf} + 8fx^{7f} + 63\]

制作完成S-Box之后，如果能求出S_Box_invert，则可以反向破译，但正如这个算法本身所保证的那样，破解难度是极其大的.

subbox
s_box = (
    0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76,
    0xCA, 0x82, 0xC9, 0x7D, 0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4, 0x72, 0xC0,
    0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC, 0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15,
    0x04, 0xC7, 0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2, 0xEB, 0x27, 0xB2, 0x75,
    0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E, 0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84,
    0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB, 0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF,
    0xD0, 0xEF, 0xAA, 0xFB, 0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C, 0x9F, 0xA8,
    0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5, 0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2,
    0xCD, 0x0C, 0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D, 0x64, 0x5D, 0x19, 0x73,
    0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A, 0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB,
    0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3, 0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79,
    0xE7, 0xC8, 0x37, 0x6D, 0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A, 0xAE, 0x08,
    0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6, 0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A,
    0x70, 0x3E, 0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9, 0x86, 0xC1, 0x1D, 0x9E,
    0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9, 0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF,
    0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99, 0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16,
)

inv_s_box = (
    0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB,
    0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB,
    0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E,
    0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25,
    0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92,
    0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84,
    0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06,
    0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B,
    0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73,
    0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E,
    0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B,
    0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4,
    0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F,
    0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF,
    0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61,
    0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D,
)

state = [
    [251, 64, 182, 81],
    [146, 168, 33, 80],
    [199, 159, 195, 24],
    [64, 80, 182, 255],
]

def matrix2bytes(matrix):
    """ Converts a 4x4 matrix into a 16-byte array.  """
    return bytes([byte for row in matrix for byte in row])

def add_round_key(s, k):
    res = [[] for i in range(4)]
    for i in range(4):
        for j in range(4):
            res[i].append(s[i][j] ^ k[i][j])
    return matrix2bytes(res)

def sub_bytes(s, sbox=s_box):
    res = [[] for i in range(4)]
    for i in range(4):
        for j in range(4):
            res[i].append(sbox[s[i][j]])
    return matrix2bytes(res)

print(sub_bytes(state, sbox=inv_s_box))
diffusion
def shift_rows(s):
s[0][1], s[1][1], s[2][1], s[3][1] = s[1][1], s[2][1], s[3][1], s[0][1]
s[0][2], s[1][2], s[2][2], s[3][2] = s[2][2], s[3][2], s[0][2], s[1][2]
s[0][3], s[1][3], s[2][3], s[3][3] = s[3][3], s[0][3], s[1][3], s[2][3]

def inv_shift_rows(s):
    '''Wrong:因为这样会导致前面的赋值影响后面的结果，写成了跟原函数一样的效果，所以要慎用原地交换
    s[1][0], s[1][1], s[1][2], s[1][3] = s[1][3], s[1][0], s[1][1], s[1][2]
    s[2][0], s[2][1], s[2][2], s[2][3] = s[2][2], s[2][3], s[2][0], s[2][1]
    s[3][0], s[3][1], s[3][2], s[3][3] = s[3][1], s[3][2], s[3][3], s[3][0]
    '''
    s[1][1], s[2][1], s[3][1], s[0][1] = s[0][1], s[1][1], s[2][1], s[3][1]
    s[2][2], s[3][2], s[0][2], s[1][2] = s[0][2], s[1][2], s[2][2], s[3][2]
    s[3][3], s[0][3], s[1][3], s[2][3] = s[0][3], s[1][3], s[2][3], s[3][3]

# learned from http://cs.ucsb.edu/~koc/cs178/projects/JT/aes.c
xtime = lambda a: (((a << 1) ^ 0x1B) & 0xFF) if (a & 0x80) else (a << 1)
# GF(2^8) 上的乘2运算（即多项式乘法后模一个不可约多项式）

def mix_single_column(a):
    # see Sec 4.1.2 in The Design of Rijndael
    t = a[0] ^ a[1] ^ a[2] ^ a[3]
    u = a[0]
    a[0] ^= t ^ xtime(a[0] ^ a[1])
    a[1] ^= t ^ xtime(a[1] ^ a[2])
    a[2] ^= t ^ xtime(a[2] ^ a[3])
    a[3] ^= t ^ xtime(a[3] ^ u)

def mix_columns(s):
    for i in range(4):
        mix_single_column(s[i])


def inv_mix_columns(s):
    # see Sec 4.1.3 in The Design of Rijndael
    for i in range(4):
        u = xtime(xtime(s[i][0] ^ s[i][2]))
        v = xtime(xtime(s[i][1] ^ s[i][3]))
        s[i][0] ^= u
        s[i][1] ^= v
        s[i][2] ^= u
        s[i][3] ^= v

    mix_columns(s)

state = [
    [108, 106, 71, 86],
    [96, 62, 38, 72],
    [42, 184, 92, 209],
    [94, 79, 8, 54],
]

def matrix2bytes(matrix):
    """ Converts a 4x4 matrix into a 16-byte array.  """
    return bytes([byte for row in matrix for byte in row])

inv_mix_columns(state)
inv_shift_rows(state)

print(matrix2bytes(state))
Bring all Together

代码量看起来很宏伟，实际上只是把先前的模块拼在了一起.

需要注意的一点是类型转换，如果在先前的代码里面，add_round_key和inv_sub_bytes已经调用过matrix2bytes，则类型冲突会报错.

N_ROUNDS = 10

s_box = (
    0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76,
    0xCA, 0x82, 0xC9, 0x7D, 0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4, 0x72, 0xC0,
    0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC, 0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15,
    0x04, 0xC7, 0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2, 0xEB, 0x27, 0xB2, 0x75,
    0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E, 0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84,
    0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB, 0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF,
    0xD0, 0xEF, 0xAA, 0xFB, 0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C, 0x9F, 0xA8,
    0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5, 0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2,
    0xCD, 0x0C, 0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D, 0x64, 0x5D, 0x19, 0x73,
    0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A, 0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB,
    0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3, 0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79,
    0xE7, 0xC8, 0x37, 0x6D, 0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A, 0xAE, 0x08,
    0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6, 0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A,
    0x70, 0x3E, 0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9, 0x86, 0xC1, 0x1D, 0x9E,
    0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9, 0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF,
    0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99, 0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16,
)
inv_s_box = (
    0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB,
    0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB,
    0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E,
    0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25,
    0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92,
    0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84,
    0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06,
    0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B,
    0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73,
    0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E,
    0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B,
    0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4,
    0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F,
    0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF,
    0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61,
    0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D,
)

key        = b'\xc3,\\\xa6\xb5\x80^\x0c\xdb\x8d\xa5z*\xb6\xfe\\'
ciphertext = b'\xd1O\x14j\xa4+O\xb6\xa1\xc4\x08B)\x8f\x12\xdd'

def bytes2matrix(text):
    """ Converts a 16-byte array into a 4x4 matrix.  """
    return [list(text[i:i+4]) for i in range(0, len(text), 4)]

def matrix2bytes(matrix):
    """ Converts a 4x4 matrix into a 16-byte array.  """
    return bytes([byte for row in matrix for byte in row])

def expand_key(master_key):
    """
    Expands and returns a list of key matrices for the given master_key.
    """

    # Round constants https://en.wikipedia.org/wiki/AES_key_schedule#Round_constants
    r_con = (
        0x00, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40,
        0x80, 0x1B, 0x36, 0x6C, 0xD8, 0xAB, 0x4D, 0x9A,
        0x2F, 0x5E, 0xBC, 0x63, 0xC6, 0x97, 0x35, 0x6A,
        0xD4, 0xB3, 0x7D, 0xFA, 0xEF, 0xC5, 0x91, 0x39,
    )

    # Initialize round keys with raw key material.
    key_columns = bytes2matrix(master_key)
    iteration_size = len(master_key) // 4

    # Each iteration has exactly as many columns as the key material.
    i = 1
    while len(key_columns) < (N_ROUNDS + 1) * 4:
        # Copy previous word.
        word = list(key_columns[-1])

        # Perform schedule_core once every "row".
        if len(key_columns) % iteration_size == 0:
            # Circular shift.
            word.append(word.pop(0))
            # Map to S-BOX.
            word = [s_box[b] for b in word]
            # XOR with first byte of R-CON, since the others bytes of R-CON are 0.
            word[0] ^= r_con[i]
            i += 1
        elif len(master_key) == 32 and len(key_columns) % iteration_size == 4:
            # Run word through S-box in the fourth iteration when using a
            # 256-bit key.
            word = [s_box[b] for b in word]

        # XOR with equivalent word from previous iteration.
        word = bytes(i^j for i, j in zip(word, key_columns[-iteration_size]))
        key_columns.append(word)

    # Group key words in 4x4 byte matrices.
    return [key_columns[4*i : 4*(i+1)] for i in range(len(key_columns) // 4)]

def add_round_key(s, k):
    res = [[] for i in range(4)]
    for i in range(4):
        for j in range(4):
            res[i].append(s[i][j] ^ k[i][j])
    return res

def sub_bytes(s, sbox=s_box):
    res = [[] for i in range(4)]
    for i in range(4):
        for j in range(4):
            res[i].append(sbox[s[i][j]])
    return matrix2bytes(res)

def inv_sub_bytes(s, inv_sbox=inv_s_box):
    res = [[] for i in range(4)]
    for i in range(4):
        for j in range(4):
            res[i].append(inv_sbox[s[i][j]])
    return res

def shift_rows(s):
    s[0][1], s[1][1], s[2][1], s[3][1] = s[1][1], s[2][1], s[3][1], s[0][1]
    s[0][2], s[1][2], s[2][2], s[3][2] = s[2][2], s[3][2], s[0][2], s[1][2]
    s[0][3], s[1][3], s[2][3], s[3][3] = s[3][3], s[0][3], s[1][3], s[2][3]

def inv_shift_rows(s):
    s[1][1], s[2][1], s[3][1], s[0][1] = s[0][1], s[1][1], s[2][1], s[3][1]
    s[2][2], s[3][2], s[0][2], s[1][2] = s[0][2], s[1][2], s[2][2], s[3][2]
    s[3][3], s[0][3], s[1][3], s[2][3] = s[0][3], s[1][3], s[2][3], s[3][3]

xtime = lambda a: (((a << 1) ^ 0x1B) & 0xFF) if (a & 0x80) else (a << 1)

def mix_single_column(a):
    # see Sec 4.1.2 in The Design of Rijndael
    t = a[0] ^ a[1] ^ a[2] ^ a[3]
    u = a[0]
    a[0] ^= t ^ xtime(a[0] ^ a[1])
    a[1] ^= t ^ xtime(a[1] ^ a[2])
    a[2] ^= t ^ xtime(a[2] ^ a[3])
    a[3] ^= t ^ xtime(a[3] ^ u)

def mix_columns(s):
    for i in range(4):
        mix_single_column(s[i])

def inv_mix_columns(s):
    # see Sec 4.1.3 in The Design of Rijndael
    for i in range(4):
        u = xtime(xtime(s[i][0] ^ s[i][2]))
        v = xtime(xtime(s[i][1] ^ s[i][3]))
        s[i][0] ^= u
        s[i][1] ^= v
        s[i][2] ^= u
        s[i][3] ^= v

    mix_columns(s)

def decrypt(key, ciphertext):
    round_keys = expand_key(key) # Remember to start from the last round key and work backwards through them when decrypting

    # Convert ciphertext to state matrix
    state = bytes2matrix(ciphertext)
    # Initial add round key step
    state = add_round_key(state, round_keys[N_ROUNDS])

    for i in range(N_ROUNDS - 1, 0, -1):
        inv_shift_rows(state)
        state = inv_sub_bytes(state)
        round_key = round_keys[i]
        state = add_round_key(state, round_key)
        inv_mix_columns(state)

    # Run final round (skips the InvMixColumns step)
    inv_shift_rows(state)
    state = inv_sub_bytes(state)
    round_key = round_keys[0]
    state = add_round_key(state, round_key)

    # Convert state matrix to plaintext
    plaintext = matrix2bytes(state)

    return plaintext

print(decrypt(key, ciphertext))

cryptohack-block_cipher

题干
from Crypto.Cipher import AES
plaintext = '63727970746f7b626c30636b5f633170683372355f3472335f663435375f217'
ciphertext = 'c11949a4a2ecf929dfce48b39daedd9e6d90c67d2f550b79259bdda835348a48'

KEY = ?
FLAG = ?

@chal.route('/block_cipher_starter/decrypt/<ciphertext>/')
def decrypt(ciphertext):
    ciphertext = bytes.fromhex(ciphertext)

    cipher = AES.new(KEY, AES.MODE_ECB)
    try:
        decrypted = cipher.decrypt(ciphertext)
    except ValueError as e:
        return {"error": str(e)}

    return {"plaintext": decrypted.hex()}


@chal.route('/block_cipher_starter/encrypt_flag/')
def encrypt_flag():
    cipher = AES.new(KEY, AES.MODE_ECB)
    encrypted = cipher.encrypt(FLAG.encode())

    return {"ciphertext": encrypted.hex()}

第一关实际上只要先encrypt一下，然后把得到的ciphertext输给decrypt函数就能得到plaintext. 喂给cyberchef可得解.

第二关需要学一点交互知识和AES调库了：

writeup
from Crypto.Cipher import AES
import requests
import hashlib

url='https://aes.cryptohack.org/passwords_as_keys/'

response1 = requests.get(url+'encrypt_flag/')
enc = response1.json()['ciphertext']
print(enc)
response1.close()

response2 = requests.get("https://gist.githubusercontent.com/wchargin/8927565/raw/d9783627c731268fb2935a731a618aa8e95cf465/words")
date = response2.text.split("\n")

response2.close()

for pwd in date:
    KEY = hashlib.md5(pwd.encode()).digest()
    print(KEY)
    ''' 比较慢的方法, json传递key去枚举
    response = requests.get(url+'decrypt/'+enc+'/'+KEY.hex())
    dec=response.json()['plaintext']
    response.close()
    下面是本地解密的方法
    '''
    aes = AES.new(KEY, AES.MODE_ECB)
    decrypt = aes.decrypt(bytes.fromhex(enc))
    if b'crypto' in decrypt:
        print(decrypt)
        break

ECB_oracle

这个题目根本没想到是逐byte爆破，看了题解才知道是怎么回事.当然，看的题解其实是需要一点修正的，不能完全复现出来情况.

题解1的修改版
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad, unpad
from Crypto.Util.number import *
import requests
import hashlib

'''
url='https://aes.cryptohack.org/ecb_oracle/'
def encrypt(plaintext):
    response = requests.get(url+'encrypt/'+plaintext+'/') # 这里plaintext不可转成hex，不然看不出位数
    enc=response.json()['ciphertext']
    response.close()
    return enc

@chal.route('/ecb_oracle/encrypt/<plaintext>/')
def encrypt(plaintext):
    plaintext = bytes.fromhex(plaintext)
    padded = pad(plaintext + FLAG.encode(), 16) # pad后面的16是指填充成16的整数倍长度.
    cipher = AES.new(KEY, AES.MODE_ECB)
    try:
        encrypted = cipher.encrypt(padded)
    except ValueError as e:
        return {"error": str(e)}
    return {"ciphertext": encrypted.hex()}
'''

# padded = pad(plaintext + FLAG.encode(), 16)
# 把输入的 plaintext 和服务器上的秘密 FLAG 拼在了一起（plaintext在前，FLAG 在后）.
# 填充 (Padding)：AES 是分组加密，要求数据长度必须是 16 字节的倍数。pad 函数负责把拼接后的数据填满到 16 的倍数（通常使用 PKCS#7 填充）
# 所以这个函数可以通过上面的枚举猜出flag长度：
# {"ciphertext":"f1fc01b6f5261ab2791273d409e982bc926b6882b9cd8bc87e1d7af1b6e869748399707d033badaa41663890fe57858e"}
# 这是个96位hex, 32bytes的ciphertext，在输入了14位hex之后得到
# {"ciphertext":"077bc05478564779802bf824e42b8af071223c29278234f552e8149d5f2f9954"}
# 这是个64位hex, 32bytes的ciphertext，在输入了12位hex之后得到
# 所以有理由相信flag长度是26bytes

charset = "etoanihsrdlucgwyfmpbkvjxqz{}_01234567890ETOANIHSRDLUCGWYFMPBKVJXQZ"

flag = b'crypto{' # 使用b''
for i in range (19): # 19 = 26 - 7('crypto{'的长度)
    base = '00' * (24-i) # 填充物的长度
    enc1 = encrypt(base)
    for j in charset:
        enc2 = encrypt(base + hex(bytes_to_long(flag+j.encode()))[2:])
        # enc2相当于“占用掉”flag的前面位置，做到了逐byte进行pad，
        # 与不占用flag只拼接的enc进行对比，如果结果相同就采用
        if (enc1[32:64] == enc2[32:64]): # 取第二个块，因为第一个块一定是相同的，不需要对比
            flag += j.encode()
            print(flag)
            break
# 不知道是不是访问有频率限制，测试了好几次，刚开始到b'crypto{p3n6u1n'的输出之后就会报错误：
# requests.exceptions.ConnectionError: ('Connection aborted.', ConnectionResetError(10054, '远程主机强迫关闭了一个现有的连接。', None, 10054, None))

# 所以一种方法是，不断修改前面的flag和函数循环参数直到flag完整.
题解2:retroid，有修改
import requests

"""
Solves in only 41 HTTP requests, with 0 assumptions about flag format etc.
I achieve this by stuffing multiple trial plaintexts into each HTTP request,
and exiting early as soon as a matching block is found.
This code is over-optimised, sacrificing readability and thus educational value.
$ time python3 solve.py
...
solved in 41 HTTP requests!
real    0m0.587s
user    0m0.203s
sys 0m0.022s
FUTURE OPTIMISATIONS:
This script solves the plaintext left-to-right. It is also possible to solve
right-to-left. We could do both in parallel and "meet in the middle", to ~halve
the execution time.
https://gist.github.com/DavidBuchanan314/beb4b4998f4131806ba466cbdff9a83e
"""

s = requests.session()
rcount = 0
def encrypt(data):
    global rcount
    rcount += 1 # track HTTP request count, just for fun
    r = s.get(f"http://aes.cryptohack.org/ecb_oracle/encrypt/{data.hex()}/")
    return(bytes.fromhex(r.json()["ciphertext"]))


# split data across multiple requests, to deal with URL length restrictions
# returns a generator so the caller can early-exit
def encrypt_big(data):
    MAX_SIZE = 0x10*56
    for i in range((len(data)-1)//MAX_SIZE+1):
        block = data[i*MAX_SIZE:(i+1)*MAX_SIZE]
        ct = encrypt(block)[:len(block)]
        for j in range(len(ct)//0x10):
            yield ct[j*0x10:(j+1)*0x10]


# put most common byte values first, so we can early-exit sooner on average
charset = list(b"etoanihsrdlucgwyfmpbkvjxqz{}_01234567890ETOANIHSRDLUCGWYFMPBKVJXQZ")
for i in range(0x100): # include all the other byte values in the charset too
    if i not in charset:
        charset.append(i)

# cache ciphertexts at all 16 possible offsets
targets = [encrypt(b"A"*(0x10-i)) for i in range(0x10)]

# we can work out the length of the flag based on when the padded length "steps up"
lengths = list(map(len, targets))
flag_len = lengths[-1] - 0x11 + lengths.index(lengths[-1])

flag = b"crypto{"
for _ in range(flag_len-7):
    # XXX: there are multiple off-by-one bugs here, that all cancel out. Trust me.
    b, i = divmod(len(flag) + 1, 0x10)
    target = targets[i][b*0x10:(b+1)*0x10] # get the ciphertext of that block

    attempts = b""
    for c in charset:
        attempts += (b"A"*0x10+flag+bytes([c]))[-0x10:]

    for c, ct in zip(charset, encrypt_big(attempts)):
        if ct == target:
            flag += bytes([c])
            print(flag)
            break
    else:
        exit("oof")

print(f"solved in {rcount} HTTP requests!")

ECBCBCWTF

题解
from Crypto.Util.number import *
import requests

url='https://aes.cryptohack.org/ecbcbcwtf/'

response = requests.get(url+'encrypt_flag/')
enc=response.json()['ciphertext']
print(enc)
response.close()

iv = enc[:32]
enc1 = enc[32:64]
enc2 = enc[64:]
# a4303894154416d146138cdb19c1edbd2c1ce7df2b73b84bd146c142faeb0fff524490dee726973472a1f8faca75cc49

response = requests.get(url+'decrypt/'+enc[32:])
dec=response.json()['plaintext']
print(dec)
response.close()

dec1 = dec[:32]
dec2 = dec[32:]

print(long_to_bytes(int(iv,16)^int(dec1,16))+long_to_bytes(int(enc1,16)^int(dec2,16)))

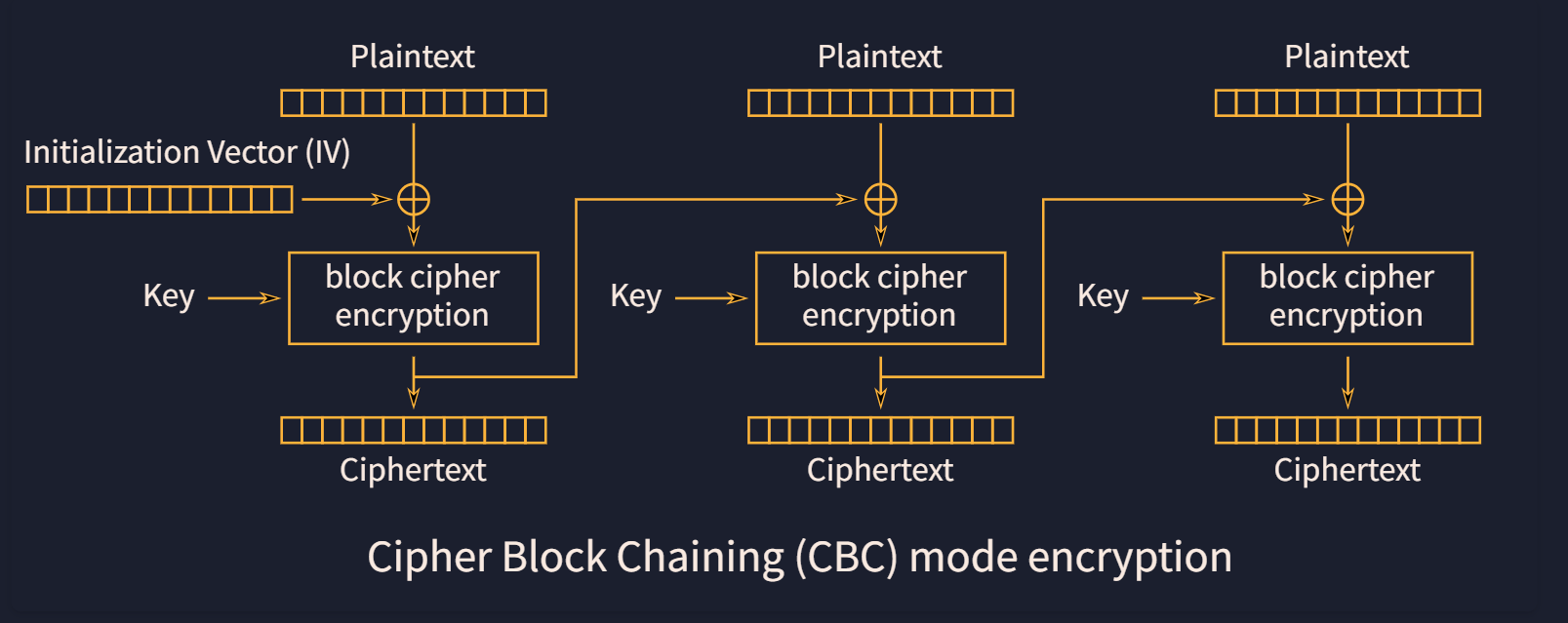

也是一个数学推导的题目，我们已经知道了cookie的返回值是由16bytes的iv和一段P1构成.

现在只需要构造一个可以骗过系统的iv，使得admin权限被获得就可以了，所以：

\[\begin{cases} m_{\text{old}} = \text{decrypt}(C) \oplus iv_{\text{old}} \\ m_{\text{new}} = \text{decrypt}(C) \oplus iv_{\text{new}} \end{cases} \Longrightarrow iv_{\text{old}} \oplus m_{\text{old}} = iv_{\text{new}} \oplus m_{\text{new}} \Longrightarrow iv_{\text{new}} = iv_{\text{old}} \oplus m_{\text{old}} \oplus m_{\text{new}}\]
题解
import requests
from Crypto.Cipher import AES
from Crypto.Util.number import *

url = 'https://aes.cryptohack.org/flipping_cookie/'
request = requests.get(url + 'get_cookie')
cookie = request.json()["cookie"]
iv = cookie[:32]
P1 = cookie[32:] # 64个hex
print(cookie) # 3414be61ceb8b3a4b69a86221d02795d0b92d1938afa83f234b5d141162bb5f2e8ca23d9a3108e30f7d3b6d9bbd8e16a

#构造虚假的iv，选了一个block
m   =b'admin=False;expi'
invm=b'admin=True;expir'

new_iv=hex(bytes_to_long(m)^bytes_to_long(invm)^int(iv,16))

request = requests.get(url+'check_admin/'+P1+'/'+new_iv[2:])
flag=request.json()['flag']
print(flag)

Symmetry

题解

实际上极其简单，需要注意到最后一步plaintext和ciphertext是可以换位的，则把cipher当作plaintext输入，可以轻松获得flag.

import requests
from Crypto.Cipher import AES
from Crypto.Util.number import *

url = 'https://aes.cryptohack.org/symmetry/'
request = requests.get(url + 'encrypt_flag/')
C = request.json()["ciphertext"]
print(C)

iv = C[:32]  # 16Bytes
enc = C[32:] # 32Bytes
print(iv,enc)

response = requests.get(url+'encrypt/'+enc+'/'+iv)
flag=response.json()['ciphertext']
print(flag)
response.close()

print(bytes.fromhex(flag))

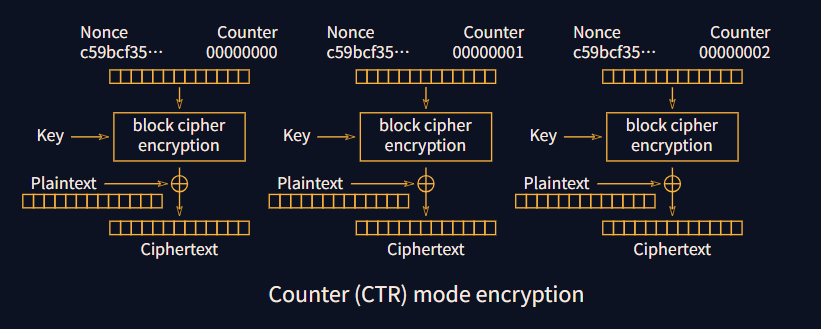

Bean_counter

题解
import requests
from Crypto.Cipher import AES
from Crypto.Util.number import *

url = 'https://aes.cryptohack.org/bean_counter/'
request = requests.get(url + 'encrypt/')
C = request.json()["encrypted"]
print(C)

# self.newIV = hex(int(self.value, 16) - self.stup) 一直执行
# 所以每次结束之后value = newIV[2:], newIV = hex(int(value,16))
# keystream = encrypt(bytes.fromhex(value.zfill(32)))

pnghead='89504E470D0A1A0A0000000D49484452'

key=int(pnghead,16)^int(C[:32],16)
print(key)

with open('flag.png','wb') as f:
    for i in range(0,len(C),32):
        flag=hex(int(C[i:i+32],16)^key)[2:].zfill(32)
        print(flag)
        f.write(bytes.fromhex(flag))

Lazy_CBC

你可能感兴趣的：之江大学2025年12月23日“四缺育人平台”课表抓取漏洞

这题的破绽在于令iv = key，使得可以被数学推导出来攻击方法.

假设decrypt函数输入的是\(C_0+C_1+C_2\)，其中\(C_0,C_1,C_2\)都是16bytes，接收到的“明文”是\(P_0+P_1+P_2\)，其中\(P_0,P_1,P_2\)都是16bytes，那么：

\[\begin{cases} P_0 = de(C_0) \oplus iv \\ P_1 = de(C_1) \oplus C_0 \\ P_2 = de(C_2) \oplus C_1 \\ \end{cases} \]

我们构造一段\(C_1=0,C_2=C_0\)的输入，则：

\[\begin{cases} P_0 = de(C_0) \oplus iv \\ P_1 = de(C_1) \oplus C_0 \\ P_2 = de(C_2) \oplus C_1 \\ \end{cases} \overset{\text{代入}C_1=0,C_2=C_0}{\Longrightarrow} \begin{cases} P_0 = de(C_0) \oplus iv \\ P_1 = de(0) \oplus C_0 \\ P_2 = de(C_0) \oplus 0 \\ \end{cases} \overset{\text{将1,3两式子左右分别相异或}}{\Longrightarrow} P_0 \oplus P_2 = de(C_0) \oplus iv \oplus de(C_0) \oplus 0 = iv \Longrightarrow \boxed{KEY = iv = P_0 \oplus P_2} \]

首先是一个从正常原理上做但是做得稍显麻烦的方法. 一开始我没看懂作者为什么要调用encrypt函数，还以为自己理解错了，后来意识到作者只是构思了一个中间全0，\(C_2 = C_0\)的输入，但大可不必如此的：

Writeup-1
from Crypto.Cipher import AES
from Crypto.Util.number import *
import requests

url='https://aes.cryptohack.org/lazy_cbc/'

test = '0' * 96
response = requests.get(url+'encrypt/'+test)
enc=response.json()['ciphertext']
print(enc)
response.close()

enc1 = enc[:32]
enc2 = enc[32:64]
enc3 = enc[64:]

m = enc1 + '0' * 32 + enc1
response = requests.get(url+'receive/'+m)
dec = response.json()
print(dec)

de = '000000000000000000000000000000002f7a8bd90ece5a242e5d7ae2d34d8be14d66727acc9652f2abc06f1718c76464' # 从上面的print(dec)结果里面复制的
iv = int(de[64:],16) ^ int('0' * 32, 16)

response = requests.get(url+'get_flag/'+hex(iv)[2:])
flag=response.json()['plaintext']
response.close()
print(bytes.fromhex(flag))

接下来是最佳办法，依照的就是上面写的数学推导：

Writeup-2
from Crypto.Cipher import AES
from Crypto.Util.number import *
import requests

url='https://aes.cryptohack.org/lazy_cbc/'

test = '0' * 96
response = requests.get(url+'receive/'+test)
dec = response.json()
print(dec)
p = '9dc430985e62876e56b8e0d59f10ba99d0a242e292f4d59cfd788fc287d7defdd0a242e292f4d59cfd788fc287d7defd'
p0 = p[:32]
p1 = p[32:64]
p2 = p[64:]
iv = int(p0,16) ^ int(p2,16)

response = requests.get(url+'get_flag/'+hex(iv)[2:])
flag=response.json()['plaintext']
response.close()
print(bytes.fromhex(flag))
