Introduction

DBMS

特点：

1. 数据获取和存储的高效率、规模性
2. 节省应用开发时间
3. Data independence， 包括 physical data independence 和 logical data independence.
4. 数据完整性（integrity）和安全性（security）
5. 并发读取（concurrenct access）和稳固性（robustness）

View of Data

Data Abstraction:

1. Physical Leval
2. Logical Level
3. View Level

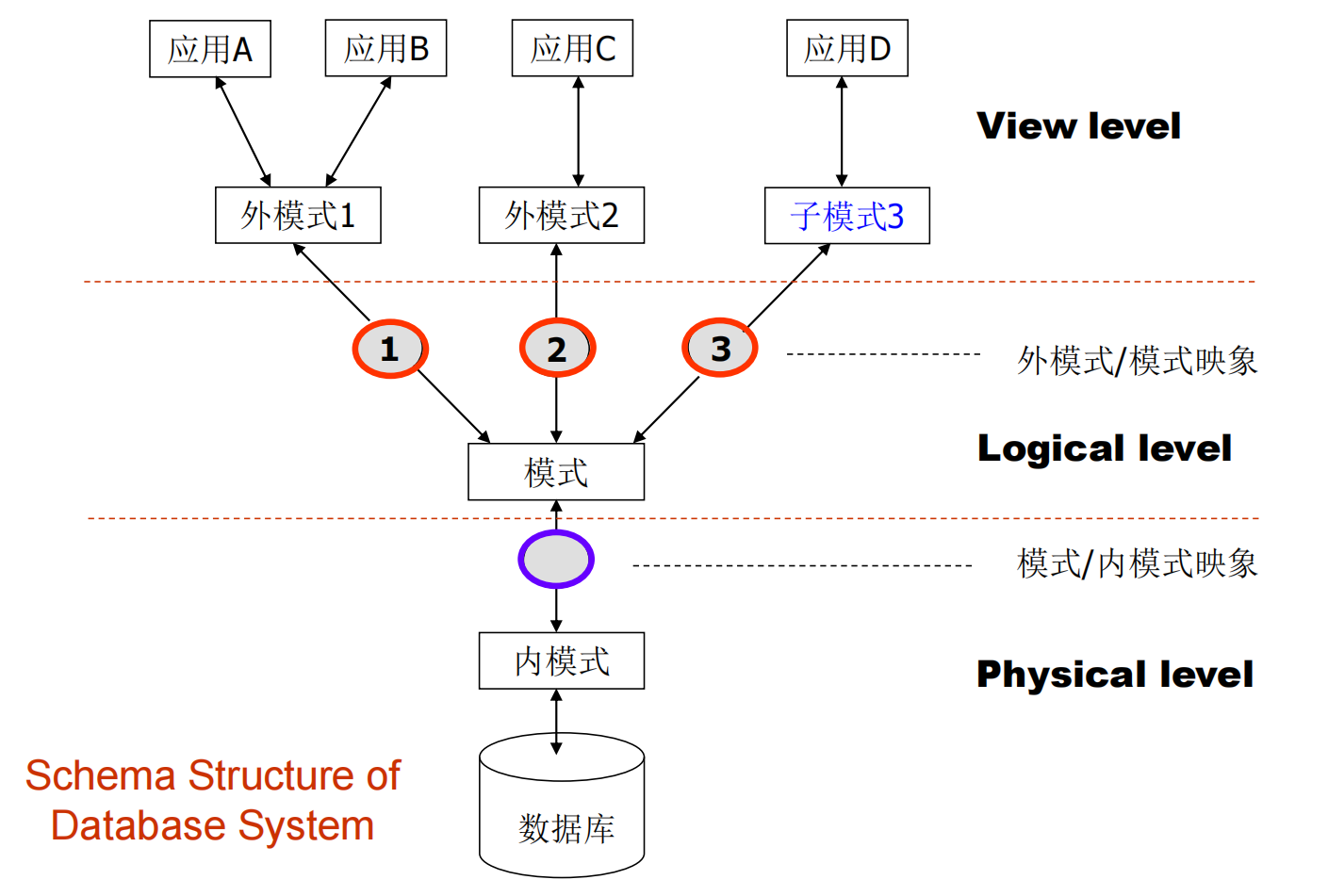

Schema（模式）: 不同level上的数据库结构

1. Physical schema: database structure design at the physical level
2. Logical schema: database structure design at the logical level
3. Subschema: schema at view level

Instance（实例）：the actual content of the database at a particular point in time

类比：type ↔ schema, variable ↔ instance

Physical Independence v.s Logical Independence：

• Physical Data Independence：the ability to modify the physical schema without changing the logical schema

• Logical Data Independence： protect application programs from changes in logical structure of data

Data Models：a collection of conceptual tools for describing data structure, relationships, semantics and constraints.

e.g. Entity-Relationship model, Relational model, Object-oriented model, Semi-structured data model, etc.

Database Language

分为三种：

• Data Definition Language (DDL): Specification notation for defining the database schema.
• Data Manipulation Language (DML): Language for accessing and manipulating the data organized by appropriate data model. 分为两类：Procedural （eg. C, Java, Pascal）和 Non-procedure (eg. SQL)
• Data Control Language (DCL)

SQL：

SQL = DDL+DML+DCL，是应用最广的non-procedural语言.

Database Design

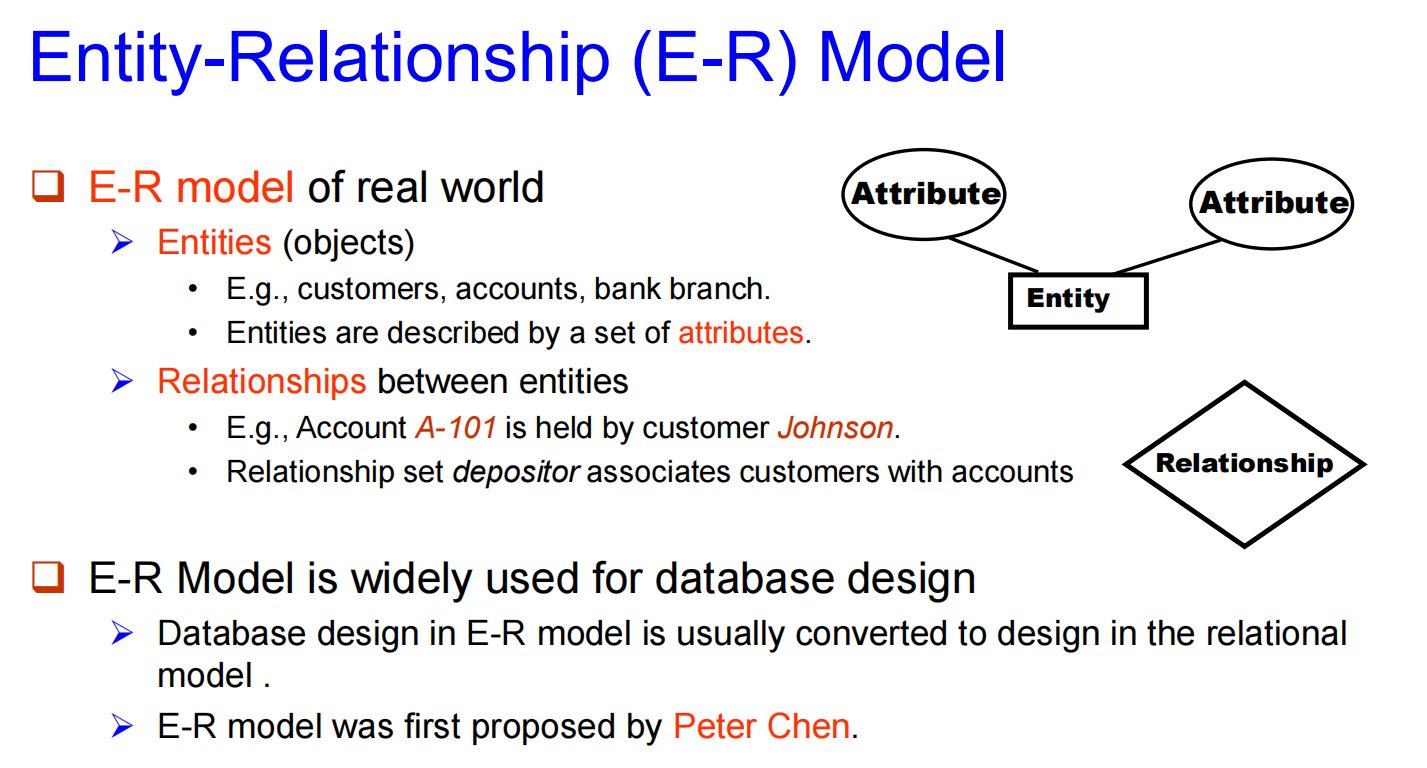

ER model:

Relational Model：Transfer E-R diagrams into relational schema

Database Users and Administrators

Database administrator (DBA，数据库管理员): A special user having central control over database and programs accessing those data.

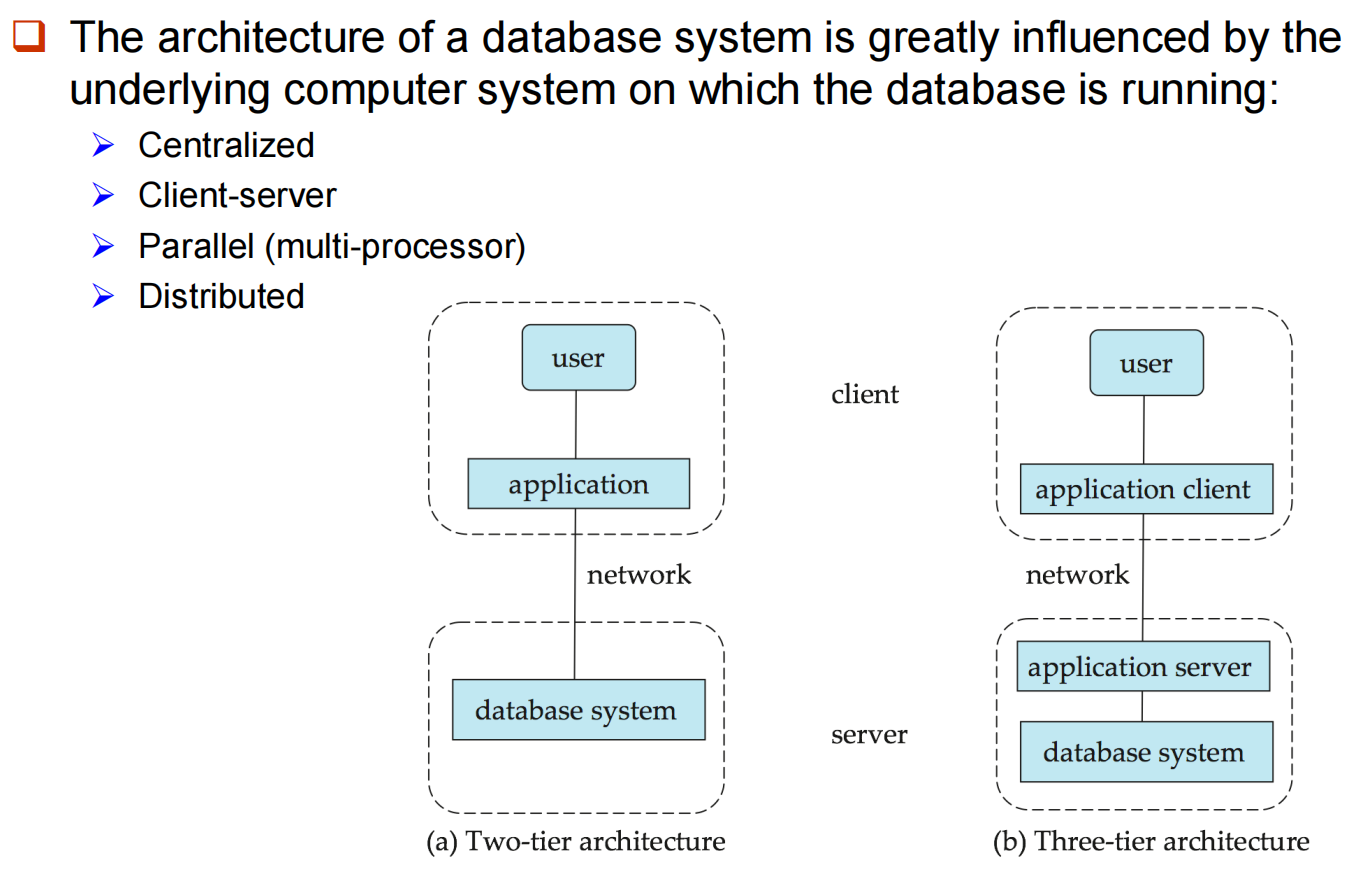

Database Architecture
